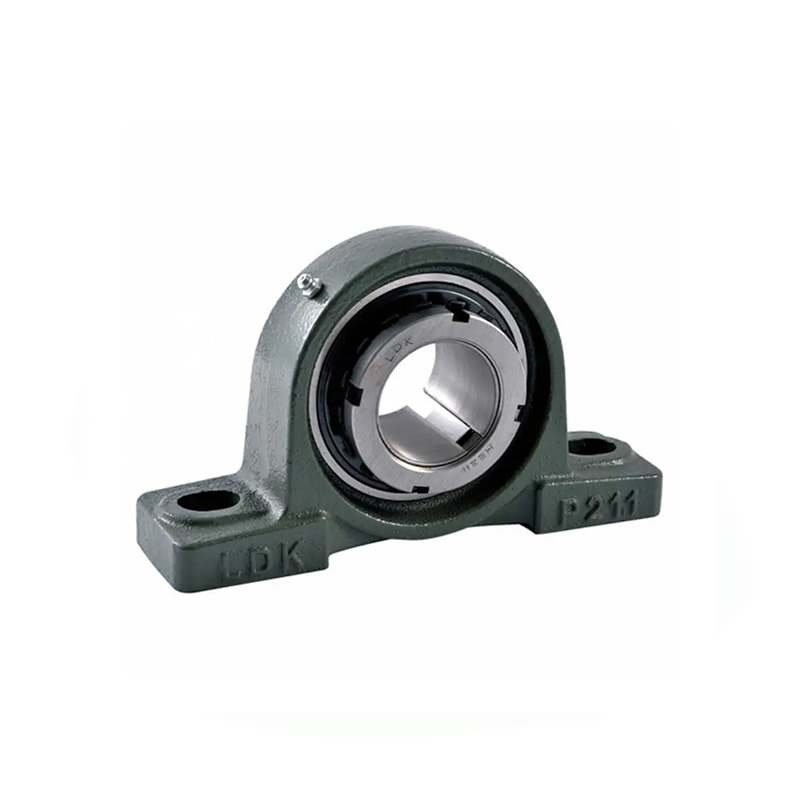

UKP205 Pillow Block bearings 2 Bolt Bearing Housing

Earing housing:	pillow block,two bolts	Insert bearing:	ball bearing UK2 series,standard duty,tapered bore
Brand:	XUAB brand	Locking type:	adapter sleeve locking
Material:	HT200 cast grey iron	Material:	outer/inner ring: Gcr15(AISI52100) steel; steel ball: G10
Zerk fittings:	Zinc plated A3 steel		retainer: steel cage.
	at 45° position	Lubricant:	SHELL GADUS S2 V220 2 only
Paint:	dark green	Other:	oil groove and holes of outer ring are at same side of adapter sleeve
Base:	hollow base		anti-rotation pin at opposite side of adapter sleeve

Bearing housing: pillow block,two bolts,LDK brand (logo could be customized)
Material:HT200 cast grey iron(ductile iron available upon request)
Zerk fittings: Zinc plated A3 steel,at 45° position (90° position also customized)
Paint: dark green (other colors are available for choices)
hollow base (solid base optional when request)
High/low temperature grease or solid lube customization is accepted

UKP205 Bearing is widely used in various applications due to their versatility and reliability. Common applications include agricultural machinery, textile, printing, construction, conveyor systems, fans, and automotive parts. UKP bearings can provide precise motion control and support under radial loads.
The design of UKP205 bearing allows for easy mounting and alignment, suitable for a broad range of industrial and commercial uses.
Both Japanese Standards and American Standards are available. See our in 3/4 pillow block bearing UKP205+HE2305 our full bearing catalogue.
