Dimensions（mm)
| d |
400 |
| D |
540 |
| T |
164 |
| C |
82 |
| γ(Minimum) |
4 |
| γ1(Minimum) |
1.5 |
Rated speed (min)-1
| Grease lubrication |
600 |
| Oil lubrication |
850 |
Install Dimensions(mm)
| da |
454 |
| da |
513 |
| γa（Maximum） |
3 |
| γb(Maximum） |
1.5 |

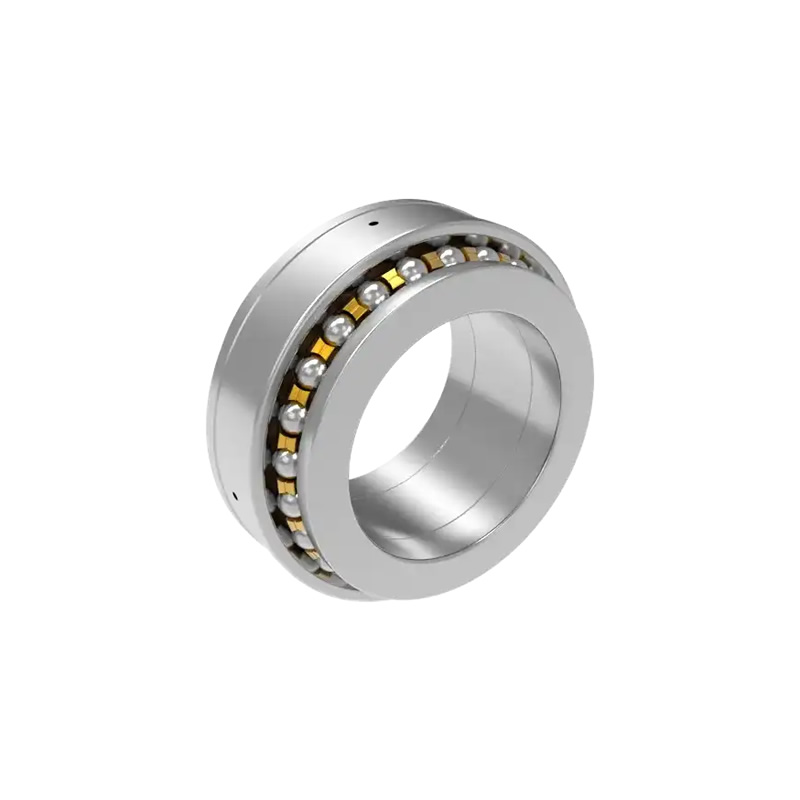

The 400TAC29D+L bearing is a angular contact ball bearing with an inner diameter of 400 mm , an outer diameter of 540 mm, a width of 164 mm. It typically uses P6 P5 P4 P2 grade precision tolerances and no seal type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
