XUAB Bearing
Product Parameters
| Parameter Category | Parameter Item | Parameter Value | Unit |
|---|---|---|---|
| Basic Dimensions | —— | ||
| Inner Diameter | 160 | mm | |
| Outer Diameter | 290 | mm | |
| Thickness | – | mm | |
| Performance Parameters | —— | ||
| Dynamic Load (Cr) | 80 | kN | |
| Static Load (Cor) | 1400 | kN | |
| Reference Speed | 1900 | r/min | |
| Limiting Speed | 2600 | r/min | |
| Additional Information | —— | ||
| Weight | 23.3 | kg | |

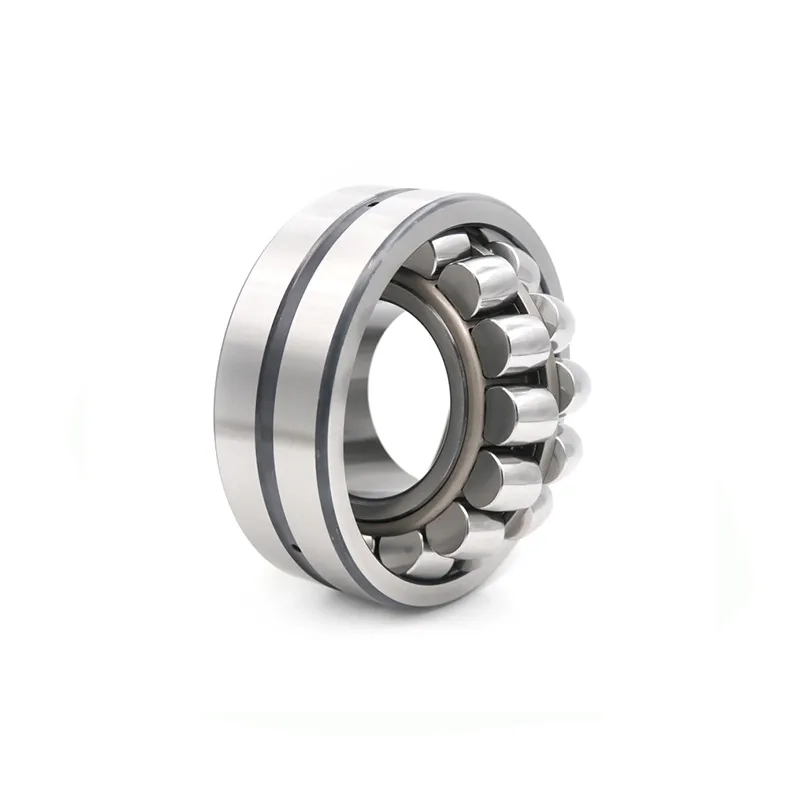

The E1 self-aligning roller bearing is a type of self-aligning roller bearing. It features symmetrical spherical rollers, a two-piece stamped cage made of hardened steel, an inner ring without a flange, and a central ring guided by the cage.
Features:
The intermediate ring, positioned close to the outer ring, improves lubrication at the contact points between the roller end faces and the ring. Its function is to reduce bearing friction, assist in guiding the rollers in the non-load zone, and help the rollers enter the load zone. At the same time, the increased roller length results in a significant improvement in the rated load capacity. Typically, the rated load capacity can be increased by 20% to 35%.
Advantages:
Capable of withstanding forces from multiple directions, suitable for high speeds, and capable of withstanding high loads.
